Name: ALUDONG PVDF ALUMINUM COMPOSITE PANEL FOR EXTERIOR FACADE
Brand: Henan Jixiang Industrial Co., Ltd
SKU: ALD-8801
Price: 8.00 USD
Availability: InStock

En casa. > productos > El panel compuesto de aluminio de PVDF >

ALUDONG PVDF ALUMINUM COMPOSITE PANEL FOR EXTERIOR FACADE

PVDF aluminum composite panel exterior facade

aluminum composite panel for building facade

PVDF coated ACP exterior cladding

Lugar de origen:

PORCELANA

Nombre de la marca:

ALUDONG

Certificación:

CE，SGS，ISO

Número de modelo:

ALD-8801

Contacta con nosotros

Pida una cita

Detalles del producto

Tratamiento superficial:

Lustroso

Uso:

interior, al aire libre

Color:

Requisitos del cliente

Tamaño:

el 1220*2440,1.22*2.44m, modificaron para requisitos particulares

Grosor del panel:

4mm

Espesor de aluminio:

0,3 mm

Tamaño estándar:

1220*2440mm

Ancho:

1220MM, 1500MM

Revestimiento:

PVDF

Longitud:

2440m m (según la petición de los clientes)

Material del núcleo:

Polietileno

Material:

Aluminio

Espesor de aluminio:

0,2 mm 0,3 mm 0,4 mm

Resaltar:

PVDF aluminum composite panel exterior facade

aluminum composite panel for building facade

PVDF coated ACP exterior cladding

Condiciones de pago y envío

Cantidad de orden mínima

600 metros cuadrados

Precio

7-10 USD/SQM

Detalles de empaquetado

Embalaje desnudo o palets de madera

Tiempo de entrega

10-15 días

Condiciones de pago

T/T, L/C

Capacidad de la fuente

1000000 hojas por mes

Productos relacionados

El video

Panel de aluminio compuesto revestido con PVDF de 4 mm resistente a la intemperie para revestimiento de paredes de cortinas exteriores

Obtenga el mejor precio

El video

Muestra gratuita disponible, hoja compuesta de aluminio ACP/ACM impresa personalizada de 4 mm, pedido de prueba sin riesgo

Obtenga el mejor precio

El video

Hoja de plástico de aluminio recubierto de PE directo de fábrica de 3 mm y 4 mm ACP/ACM para decoración de paredes interiores de cocina y baño

Obtenga el mejor precio

Panel compuesto de aluminio recubierto de PVDF de 4 mm para revestimiento de paredes exteriores

Obtenga el mejor precio

Contacta con nosotros

86-15238626739

jasonlee@henanjixiang.com

86-371-60292098

Contacta ahora

Descripción del producto

Company Profile

HENAN JIXIANG INDUSTRY CO.,LTD

HENAN JIXIANG INDUSTRY CO.,LTD is a leading Chinese manufacturer of aluminum and composite materials with over 20 years of expertise. Certified with ISO 9001, CE, and SGS, we export to 100+ countries, offering reliable materials by R&D innovation and strict quality control.

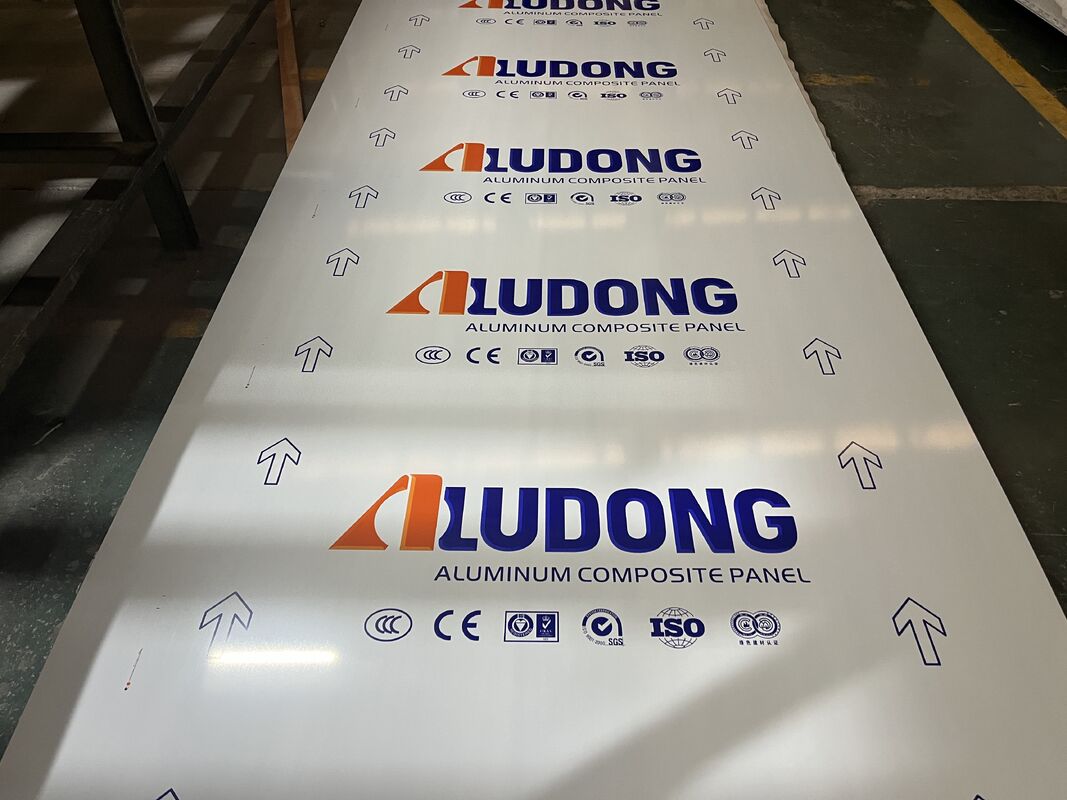

ALUDONG ALUMINUM COMPOSITE PANEL

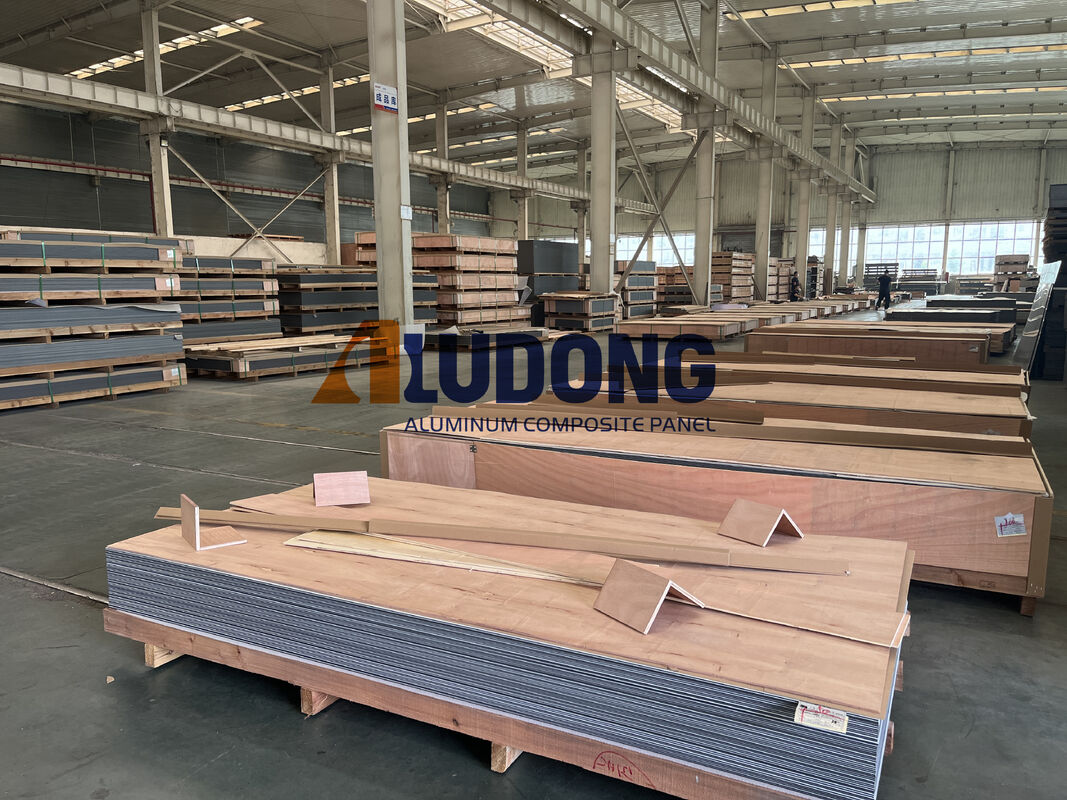

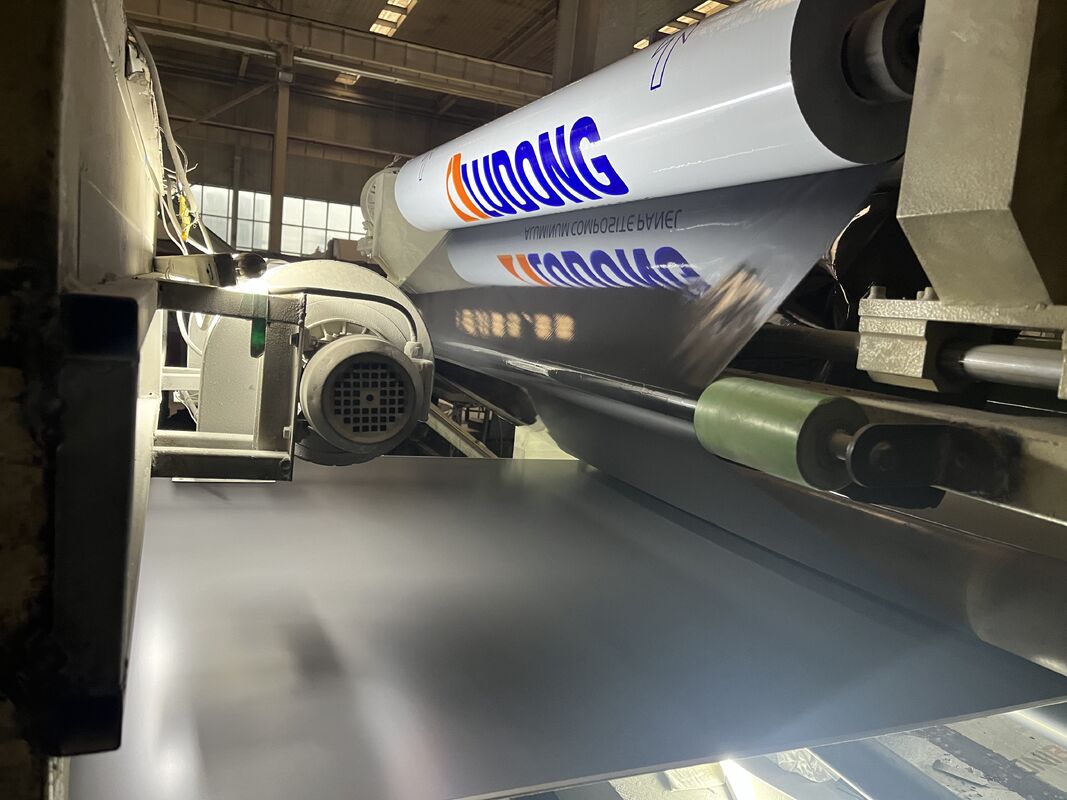

Henan Jixiang Industry Co., Ltd; Henan Aludong Decorative Materials Co.,Ltd is located in Zhengzhou City,Henan Province, Which a professional enterprise manufacturing high and new-tech aluminum composite products,which is one of the earliest and scaled manufacturers of aluminum composite, coated aluminum coils, aluminum solid panel in China.Our company possesses16 production lines and 6 coating lines for aluminum composite panels whose annual output is 5800000 square meters.In addition, our company has passed ISO9001 International Quality Management System Certification, ISO14000 Environment Management System Certification, OHSAS18000 Occupation Health Safety Management System Certification, and CTC Product Quality Certification, and won several national patents.

Specification

DIMENSIONAL STANDARD:

Standard Size: 1220*2440mm

Optional width: 1000/1020/1050/1250/1500/1550/1570mm

Optinal lenghth: as requests

Standard Thickness: 3/4mm

Optinal Thickness: 2/2.5/5/6/7/8mm

Dimensional Tolerance:

Panel width: +-2mm

Panel length: +-3mm

Panel thickness: +-0.2mm

Panel diagonal: <5mm

Aluminum sheet thickness: +-0.02mm

ALUDONG ACP APPLICATION:

•Outdoor advertising

•Signage
•Store Poster
•Supermarket poster
•Decorative mural painting
•Exhibition
•Partition
•Outdoor signage - Company sign boards, small pylons,wall advertising •board
•Exhibition stands / wall panels / ceiling construction
•POS applications
•Retail interior furnishings
•Digital Printing
•The product colour could be changed by vinyl application / spray paint

SOLID & METALLIC

WOODEN & MARBLE

BRUSHED

ALUDONG ACP Characteristics

Products features:

•Light weight•Excellent curve and bend strength
•Choice of rich colors and finishes
•Flat surface and consistent colors
•Easy processing and installation
•Fine impact resistance
•Exceptional weather resistance
•Easy maintenance
•Fire reistanct
•Printable surface as sign materials

•Customized size avaliable

Specifications

(Custom configurations available upon request.)

WIDTH	PE	PVDF	ANODIZED MIRROR
1000-1220mm	0.05-0.50mm	0.21-0.50mm	0.30-0.50
1500-1570mm	0.15-0.50mm	0.21-0.50mm	/

ALUDONG PVDF ALUMINUM COMPOSITE PANEL

TECHNICAL DATA

Description	Test standard	PVDF
Coating Thickness (μm)	Polyester paint >=25μm	26μm
Coating flexibility (T-bend)	Polyester paint ≤ 3T	≤ 2T
Color different	ΔE<=2.0 (follow color sample)	ΔE<=2.0
Pencil hardness	>=HB	>=2H
Chemical resistance	5%HCI or 5%NaOH test in 48 hours -No change	No change
Coating adhesion	>=1grade for 10810mm2 gridding test	1grade
Resist solvent	100 times without change	No change
Boiling water resistance	2 hours without change	No change
Peeling strength/stripping strength	Average >=5N/mm of 180oc peel off for panel with 0.30mm alu.skin	5N/mm
Impact test for paint	50KG.cm impact-paint no split for panel	No split
Abrasion resistance (L/Mi)	NIL	NIL
Temperature resistance	-40ºC to +80ºC temperature without change of color differenceand paint peel off , peeling strength average dropprate<=10%	Change of glossy only, no paint Peel off
Coefficient of linear Thermal Expansion	100ºC temperature difference	2.4mm/n
Detergent resistance (3%)	ASTM D2248	No change
Humidity Resistance	ASTM D2247 (3000hrs,100%RH,100°F)	No change
Salt spray resistance	ASTM B117 (3000hrs,5% salt)	No change
Resistance to Staining	600h radiate in 800W/M2 in humidity condition,glossiness deviation less grade 2,color difference <=4.0	No change

After Sales Service

Standard Warranty: 10 days for outter looks after upload goods, 6 months for inner quality
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

Why Choose Us?

Other Products

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support

Project solutions

Large Produdction capacity

ZWM brand / ALUDONG brand

Aluminum Honeycomb Panel

Stainless Steel Composite Panel

Coated Aluminum Coils

Solid Aluminum Panel

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–20days; customized units require 20–25days.

Q: Do you have waranty for the materials?
A: Yes, PE coat: 3-5 years; PVDF: 10-15 years for exterior.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.

Q: Can I request a customized size and brand?
A: Absolutely! We offer customized size and branded service.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
